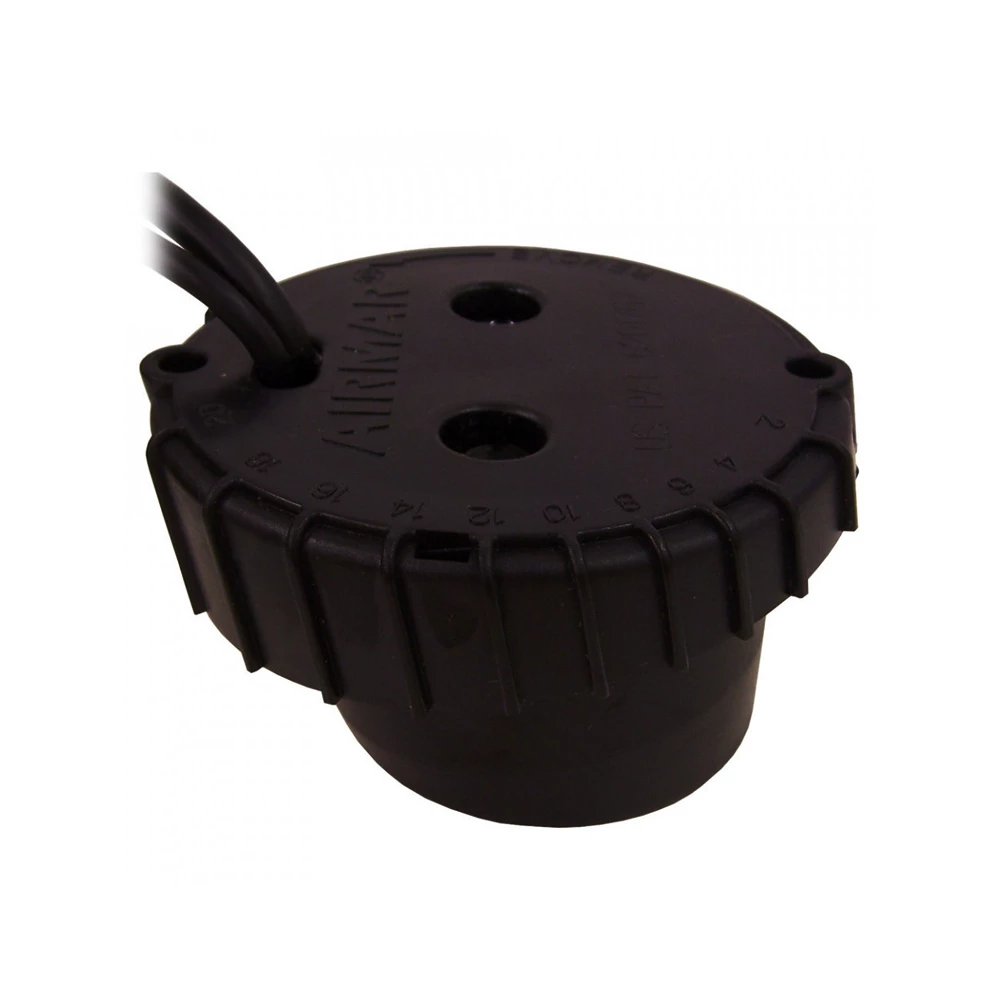

Furuno 520-IHD (Airmar P79) In-Hull Transducer 10-Pin

Accurate and sensitive

The Furuno 520-IHD In-Hull Transducer easily
adjusts to hull dead rise angles up to 22°. This ensures that the
beam is vertically oriented to receive echoes, resulting in
accurate depth readings. The 600W dual frequency element (50 &
200kHz) is very sensitive holding bottom at high speeds. The
transducer is supplied complete with wet box and pig-tail for
joining a speed temp sensor where all connections are hidden below
deck.

Unlike traditional “puck” type transducers, this transducer’s P79
style housing consists of a base that is bonded to the hull and
filled with liquid. The separate transducer then attaches to the
base with a twist lock. The sound waves travel more efficiently
through the liquid, giving the best possible performance. And
what’s more installation is very simple as there is no need to
drill through hull holes.

Furuno 520-IHD In-Hull Transducer Features:

• Mounting type: In-Hull
• Airmar P79 Housing Style Transducer
• Frequency: 50 and 200kHz
• Power (RMS): 600W
• Beam angle: 50kHz = 45° and 200kHz = 15°
• Housing material: Plastic
• Plug: 10 Pin Furuno with 6 pin Speed Temp “pig-tail” adaptor
  plug
• Temp Sensor: No
• Speed: No
• Includes 30ft cable with 10-Pin connector
