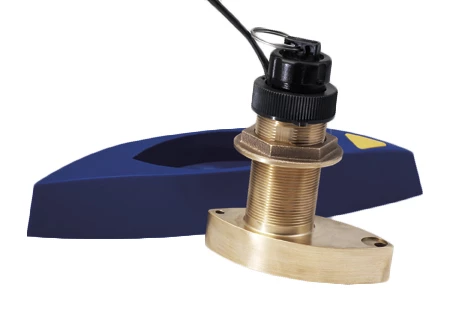

Furuno 525STID-MSD7 (Airmar B744VL) Long Stem Bronze Thru Hull Triducer

Triducer Multisensor – 3 sensors in one!

The Furuno 525STID-MSD7 (Airmar B744VL) Long Stem Thru Hull
Triducer provides three sensors – depth, speed, and
temperature all in one thru-hull housing! The B744VL is a long-stem
version of the B744V depth, speed and temperature thru-hull
fishfinder with an external fairing that can be cut to match
deadrise angles of up to 24 degrees.

The Furuno 525STID-MSD7 Transducer‘s patented
valve assembly prevents water from rushing into the hull when the
insert is removed for cleaning or storage. Its innovative housing
design allows the transducer to be fully recessed into its custom
high-performance Fairing. The end result is a streamlined
installation. At speeds above 30 knots (34 MPH), the Furuno
525STID-MSD7 will produce clear images and solid bottom tracking!
This transducer is ideal for inshore or coastal fishing in shallow
to medium depths, slow trolling, structure fishing, drifting, and
deep water lake fishing. This unit is ideal for all 600W
fishfinders and requires only a single hole in the hull.

Furuno 525STID-MSD7 (Airmar B744VL) Long Stem Thru Hull
Triducer Features:

• Airmar B744VL Housing Style Transducer
• Thru-hull bronze transducer with external fairing that can be
  cut to match deadrise
• Bolt at front of fairing keeps transducer aligned with water
  flow
• Valve prevents water ingress when insert is removed
• Blanking plug included
• 10M cable attached

Furuno 525STID-MSD7 (Airmar B744VL) Long Stem Thru Hull
Triducer Specifications:

• Furuno Model No. 525STID-MSD7
• 7in Long Stem
• Function: Speed/Temperature
• Material: Bronze
• Frequency: 50/200kHz
• Cone: 45° (50 kHz) / 12° (200 kHz)
• Power: 600W RMS
• Connector: 10-pin
• Mount: thru-hull
• Connector: 10-pin
• Hull deadrise: up to 24°
• Depth range: 800 – 1200 ft. (50 kHz) / 400 – 700 ft. (200
  kHz)
• Speed operating range: 1 – 45 kts
• Compatible hull materials: fibreglass or wood
• Hole diameter for installation: 2in
