Furuno DRS4W Wireless Radar 4 KW 19in

The world’s first wireless Radar – developed for iOS
devices!

Looking for an economic and easy way to install a high-performance
radar on your boat? The Furuno DRS4W Wireless
Radar combines ease of use with great flexibility. It’s
the first radar antenna in the world that allows you to wirelessly

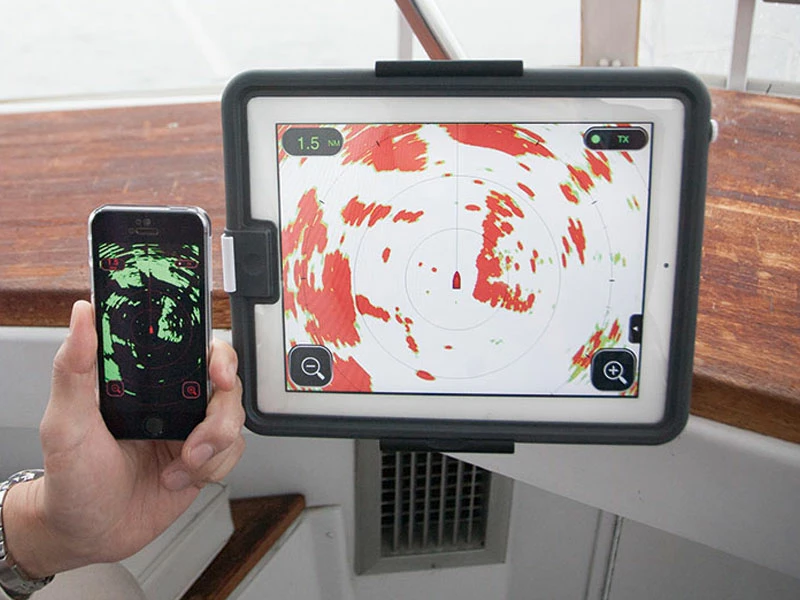

access radar images on your iOS devices. After installing and setting up the application available from the Apple store for free, you can watch radar images directly on your iPad or iPhone. You are free to move around on your boat whilst still having complete information of your surroundings.

Move around and explore
With the new 1st Watch Wireless Radar, you can do things previously
impossible. You can bring the Radar display where ever you go, even
put it on the iPhone in your pocket.

Get it at the 1st glance
Plug in the Radar, set up the app from App Store and you’re good to
go. With familiar gestures it’s a breeze to use, you can even use
two iOS devices simultaneously.

Less cables, more flexibility

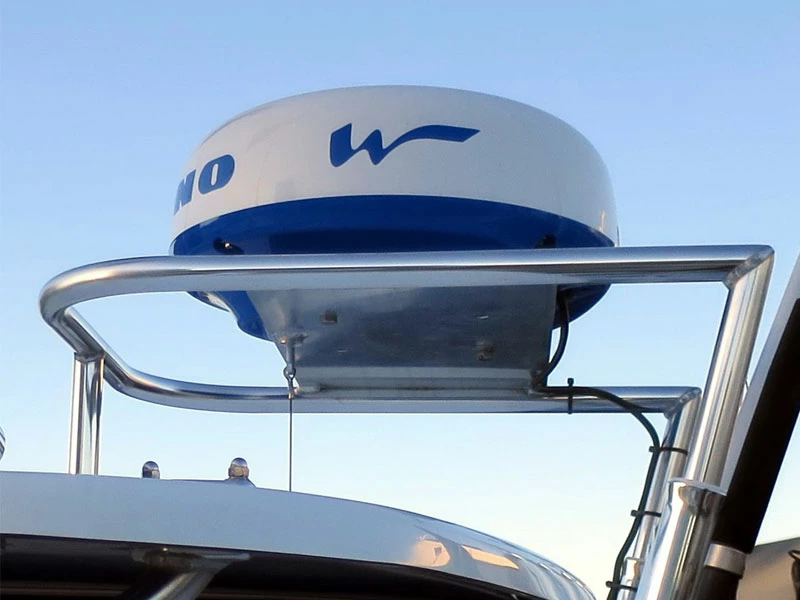

Installation is simple with its compact and lightweight Radar
antenna. Mount it, plug in the power cord and you’re done.

Marine Radar – iOS App
To use the 1st Watch Wireless Radar (DRS4W), you will need to
download the Marine Radar app from Apple App Store. The app is
available for free, just click
here.

Furuno DRS4W Wireless Radar Features:

• Bring the Radar display where ever you go, even put it on the
  iPhone in your pocket!
• Use two iOS devices simultaneously
• Mount it, plug in the power cord and you’re done
• 4kW radar antenna, powerful yet compact in size
• The world’s first radar that allows you to wirelessly access
  radar images on your iOS devices
• Image quality that matches that of a conventional 10″ wired
  Radar
• Guard zone alarm available with updated Marine Radar App
  ver.2.0.0
• Simple touch interface with familiar gestures

Furuno DRS4W 1st Watch Wireless Radar
Specifications:

• Power supply: 12/24 V, 2.1-1.0 A (max)
• Temperature: -25°C to +55°C
• Waterproofing: IP26

Antenna

• Peak output power: 4 kW
• Type: ø488 mm Radome (19 inch)

RF Transceiver

• Frequency: 9410 ± 30 MHz
• Range scales: 0.125 to 24 nm
• Antenna rotation speed: 24 rpm
• Wind load: Relative wind 70 kn

Wireless LAN (number of connectable devices)

• iOS devices: 2 units
• Communication frequency: 2.4 GHz band

Display

• Display: iPad/iPad mini/iPhone
• Compliant OS: iOS6/iOS7/iOS8/iOS9
• User direction: Vertical/Horizontal (iPad, iPad mini
  only)
• Language: English
• Method of obtaining: “Marine Radar” at Apple Store (Free of
  charge)
• Mode: Auto Gain, Auto STC, Rain, Auto Noise rejector, Sector
  blank, Off center, Cursor position, Guard zone alarm

What’s in the box:

• 1 x Antenna Unit RSB-126
• 1 x 10m Power cable

Furuno DRS4W Wireless Radome

Note: Please note that iOS devices are sold
separately and do not come included with this product.

Note: The radar’s SSID and password is
supplied inside the packing box. Download Marine Radar DRS4W App
onto your iPad/iPhone from App Store. Click on iPad/iPhone >
Setup > Wi-Fi > then look up the radar sensor and paired the
two by using the SSID and password supplied. Click on DRS4W App to
view radar screen.
