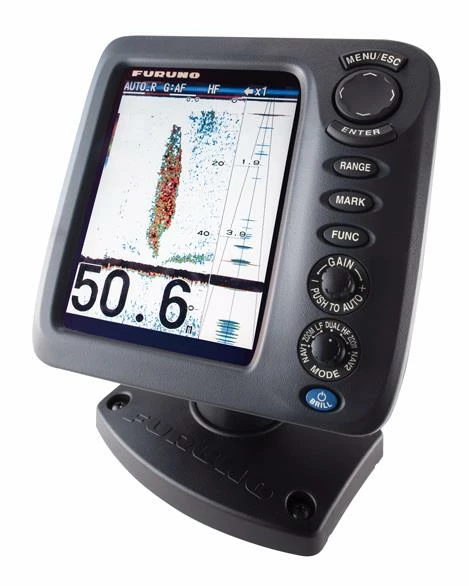

Furuno FCV-628 5.7” Colour LCD Fishfinder

Fantastic clarity and target separation

Ideal for small to medium sized trailer boats, kayaks, jetskis,
dinghies and other smaller water craft, the Furuno FCV-628
5.7” Colour LCD Fishfinder features an enhanced sunlight
viewable, polarised-friendly bonded LCD display and uses the
revolutionary RezBoost technology that increases resolution and
improves target separation. You can even determine the fish size
thanks to the ACCU-FISH feature. This fishfinder is jam packed with
great features to boost your catch of the day.

RezBoost
RezBoost is a revolutionary new signal processing technology that
improves resolution and target separation when using conventional
narrowband transducers. Spot individual game fish surrounding bait
balls, as well as fish close to the seabed. Not only can you expect
higher resolution and crisper visuals, but also improvements in the
ACCU-FISH function.

With RezBoost technology, the resolution is increased, leading to
sharper and more defined echoes. Thanks to this increase in
resolution, the accuracy of the ACCU-FISH function is also
improved. ACCU-FISH is very useful when you need to determine fish
size, but also has the added benefit of making fish echoes more
visible when viewed from a distance. With ACCU-FISH you can spot
individual fish echoes even from the deck on your vessel.

ACCU-FISH
Recognise individual or multiple fish instantaneously with
ACCU-FISH! In order to assess individual fish size, echo returns
are evaluated based on strength and turned into fish size display
on screen. ACCU-FISH can detect fish size from 10 to 199 cm, in
depths of 2 to 100 m. The fish mark can be utilised to display
individual fish echoes when they are detected. It helps you to
identify fish echoes for a more engaging fishing experience. Fish
marks are selectable from either a circle or square, as well as,
two fish symbols. The fish symbols, displayed in two different
sizes (Large: over 50 cm, Small: 10 to 49 cm), are a great help for
anglers when identifying individual fish. The circle and square
symbols identify individual fish without hiding the underlying
echo.

Bottom Discrimination Function
FCV628’s Bottom Discrimination function enables the fishfinder to
indicate whether the bottom is composed mainly of rocks, gravel,
sand or mud. It provides you with valuable information that helps
you locate rich fishing grounds and boost your catch of the day.
The White Line function distinguishes fish from the seabed. This
function is useful for discriminating bottom fish as well as
judging fish school density.

Furuno FCV-628 5.7” Colour LCD Fishfinder
Features:

• Improved clarity and resolution that was previously impossible
  with conventional narrowband transducers has been made possible
  thanks to the new RezBoost technology
• ACCU-FISH – A unique fish size analyzer based on the latest
  digital technology
• Bottom Discrimination Analyzes bottom structure. Provides an
  at-a-glance recognition of bottom composition with four types of
  graphical displays – Rocks/Sand/Gravel/Mud
• White Line feature – Discriminate fish lying near the bottom.
  The top edge of the bottom echo is displayed in white to clearly
  show bottom structures. This feature helps to discriminate between
  weeds and bottom fish.
• Configurable Alarm function (depth, fish echoes, etc.)
• Furuno’s TLL (Target Lat/Lon) output allows you to interface
  the FCV628 with your Furuno chart plotter so that you can mark
  fishing grounds with various information (L/L, Depth, Water Temp,
  Fish size and Bottom type) (chartplotter required)
• Fast transmission rate of 3,000 PRR (Pulse Repetition Rate) per
  minute (at 5m depth range)

Furuno FCV-628 5.7” Colour LCD Fishfinder
Specifications:

Display

• Display unit: 5.7″ TFT colour LCD
• Pixel number: VGA 480 x 640

Fishfinder

• Frequency: 50 and 200 kHz
• Transducer: 600 W
• Range Scale: 2-1200 m
• Pulselength & PRR: 0.04-3 ms, Max 3,000 pulse/min
• Display Mode: Single frequency (50 or 200 kHz), Dual frequency,
  Zoom, Nav data, A-scope, Marker zoom, Bottom zoom, Bottom-lock,
  Bottom Discrimination, ACCU-FISH, RezBoost

Others

• Waterproofing: IP56
• Power Supply: 12-24 VDC, 11-0.5 A
• Size: 207 (H) x 170 (W) x 132 (D)
• Weight: Bracket Mount: 1.3 kg
• Flush Mount: 0.9 kg

Note: Transducer not included.
