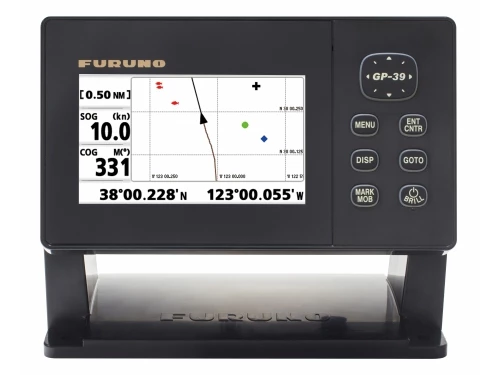

Furuno GP-39 GPS Navigator With Trackplotter NMEA2000

Quick and precise positioning

The Furuno GP-39 GPS Navigator provides accurate
and reliable position fixing, thanks to a 12-channel GPS receiver
combined with integrated SBAS (WAAS/EGNOS/MSAS) technology. The
GP-39 has various display modes (Plotter, Highway, Steering, NAV
data, Satellite monitor and 2 user-customisable modes) on the 4.2″
colour LCD. Up to 3,000 points of ship track, 10,000 waypoints and
100 routes (each with up to 30 waypoints) can be stored. The
waypoint and route data can be exported/imported via a USB flash
drive or signal converter.The GP-39 can be networked with a
fishfinnder, sonar, radar or other navigation equipment for feeding
highly accurate navigation data.

Furuno GP-39 GPS Navigator Features:

• Newly designed GPS core delivers enhanced position fixing
  accuracy
• 4.2″ high-resolution colour LCD
• Storage for 3,000 track points, 10,000 waypoints and 100
  routes
• SBAS capable for better positioning calculations
• Share and display position information on networked equipment
  such as a fishfinder, sonar, radar, etc.
• 7 display modes available, including 2 user-customisable
  modes
• Waypoint and route data can be exported/imported via a USB
  flash drive or signal converter
• Multi-language ready : English, French, Spanish, Chinese,
  Vietnamese, Malay, Indonesian and Thai

Furuno GP-39 GPS Navigator Specifications:

Display

• Screen Size: 4.2″ colour LCD
• Effective Display Area (W x H): 92 x 52mm
  Pixel Number: 480 (V) x 272 (H) pixels
• Display Mode: Plotter, Highway, Steering, NAV Data, Satellite
  monitor, User Display (Digital, Speedometer, COG)
• Memory Capacity: 3,000 ship’s track points 10,000 waypoints
  with comments 100 routes with 30 waypoints/route
• Alarm: Arrival and Anchor watch, Cross track error, Speed, WAAS
  (SBAS), Time, Trip
• Power supply: 12-24 VDC : 0.7-0.3 A

GPS/SBAS (WAAS/EGNOS/MSAS)

• Receiver Type:
  GPS: 12 channels parallel, 12 satellites tracking, C/A code,
  all-in-view
  SBAS: 2 channels
• Receive Frequency: L1 (1575.42 MHz ± 1.023 MHz)
• Time to First Fix: Cold start: 90 seconds approx.
• Tracking Velocity: 1,000 kn
• Accuracy:
  GPS: 10 m (95% of the time, HDOP≤4)
  WAAS: 3 m (95% of the time, HDOP≤4)
  MSAS: 7 m (95% of the time, HDOP≤4)

Interface

• Ports: NMEA0183: 1 port USB: 1 port
• Output: AAM, APB, BOD, BWC, BWR, DTM, GGA, GLL, GSA, GSV, RMB,
  RMC, VTG, XTE, ZDA
• Input: RTE, TLL

Environment

• Temperature:
  Display unit: -15°C to +55°C
  Antenna unit: -25°C to +70°C
• Relative humidity: 93% or less at +40°C
• Waterproofing:
  Display unit: IP55
  Antenna unit: IP56
