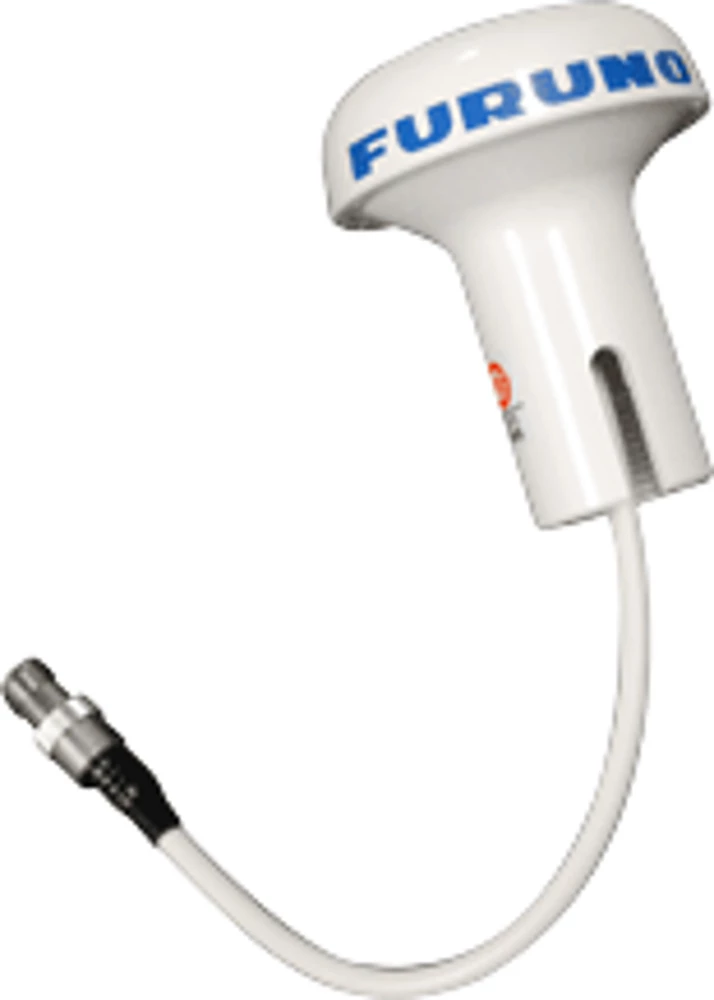

Furuno GPA-017S GPS Antenna With 0.2m Cable

Navigate with safety and confidence

The Furuno GPA-017S GPS Antenna is suitable for use with your Furuno FA40 and FA70 AIS receivers and transponders. Fix it onto your receiver/transponder to complete your marine navigational system.

Furuno GPA-017S GPS Antenna Specifications:

Performance Ratings:

• Operating temperature: -25deg to +65deg Celsius
• Storage temperature: -35deg to +75deg Celsius
• Operating relative humidiity:
• Power voltage: 5.0VDC

Antenna Characteristics:

• Frequency range: 1,575.42MHz +/- 1.023MHz
• Polarization: RHCP (Right Hand Circular Polarization)
• Gain: > 2.0dBi (at 90deg elev. angle), > -4.0dBi (at 10deg elev. angle)
• Axial ratio:

LNA (not including cable, at 25 ± 5deg C, 65 ± 20% humidity):

Item	Ratings	Criteria for environmental tests
Frequency range	1,575.42MHz ± 1.023MHz	1,575.42MHz ± 1.023MHz
Gain	27.5 ± 5.5dB	26.5 ± 5.5dB
Noise figure
Out band attenuation	fo ± 20MHz (>7dB)	fo ± 20MHz (>6dB)
	fo ± 50MHz (>20dB)	fo ± 50MHz (>19dB)
	fo ± 100MHz(>30dB)	fo ± 100MHz(>28dB)
	(fo=1575.42MHz)	(fo=1575.42MHz)
Output VSWR

• Supply voltage: 4.75 ± 0.75VDC
• Power consumption:

Note: (Supply Voltage) Reversed Bias-T may cause damage.
