Furuno NavNet TZtouch2 12” GPS/Fishfinder Deep Water Package

High performance commercial GPS Fisfinder

Ideal for medium to large sized trailer boats, launches and yachts,
the Furuno NavNet 12.1” TZtouch2 GPS/Fishfinder Deep Water
Package provides commercial grade features for the
ultimate fish finding performance. This package comes complete with
a 12″ sunlight viewable NavNet display, NZ Chart plus a blank SD
Card, two commercial grade transducers, the powerful DFF3 sounder
(up to 3kW) and network connectors. It’s the ultimate navigation
suite that is not only functional, but offers a luxurious look and
feel.

Package includes:

• Furuno TZTL12F NavNet TZtouch2 12.1” Multifunction
  Display
• NN3D/Maxsea TimeZero Jeppesen NZ C-MAP Wide Vector Chart (New
  Zealand)
• Furuno GPS Receiver with 6m NMEA Cable
• Furuno DFF3 1-3kW Digital Sounder Module
• Furuno CA38BL-9HR FRP Transducer 2kW 38kHz
• Furuno CA200B-8B Rubber Coated Transducer 200kHz 2kW
• Network connectors and installation materials

The Multifunction Display
Upgrade your boat with Furuno’s world leading fish finder and
navigational technology. With a sleek all glass front, refined
graphical user interface, built-in RezBoost Fishfinder and internal
GPS antenna, the Furuno NavNet TZtouch2 12.1″ Multifunction
Display is leading the world in marine electronics
technology. Whether you’re searching for hot fishing grounds,
plotting your next route or using your Radar to navigate through
fog, the TZtouch2 is one simplest platform to operate. It delivers
smooth operation while remembering familiar touch gestures.

All about usability
The newly refined graphical user interface makes operation a
breeze! Accessing different displays is achieved by tapping on the
Home icon, or utilising the new “Edge Swipe” motion. Swiping from
the left edge reveals the NavData panel, where you can customise
content to simplify navigation and chart usage. From here, you can
set the autopilot, check tide information and much more. Swiping up
from the bottom of the screen unveils the new Layers menu, a
practical way of changing settings on the fly without having to
venture into deeper menu systems.

GPS and Fishfinder
A 56-channel Furuno GPS Receiver is built into the display. You can
connect an external antenna for redundancy, but the primary GPS
receiver is built-in, saving you money on additional equipment and
installation cost. The built-in Fish Finder is a dual-frequency
(50/200kHz), 600W/1kW power output sounder. It includes Furuno’s
unique Bottom Discrimination and AccuFish modes, and also
incorporates another new Furuno proprietary Fish Finder technology,
called RezBoost. RezBoost is a revolutionary new feature that
utilizes Furuno’s exclusive digital signal processing protocol to
produce fantastic target resolution and separation.

Networking
Add a variety of UHD Radars, from a 4kW Dome up to a 25kW Open
Array. As with NavNet TZtouch, you can integrate, display, and
control the NavPilot Autopilot and Furuno’s new FI70 Instrument.
Both of these products have displays that match TZtouch2, giving
your helm a beautiful all-glass finish. Additional sensors that can
be added to the network include AIS, Weather Fax, Sirius/XM
Satellite Weather, Fusion Marine Stereo, and IP Cameras, as well as
NMEA2000 and Furuno CAN bus devices. It even includes one NMEA0183
output port to send data to legacy systems.

The GPS Receiver
The Furuno GP-330B GPS/WAAS Receiver Antenna is a
high performance GPS Receiver designed for any type of vessel. This
compact and cost effective receiver offers accurate position fixes
within 3 metres with the WAAS mode activated. The GP-330B is
capable of data output in CAN bus/NMEA2000 format, making it an
ideal GPS sensor for use with NavNet 3D systems. The sensor comes
with all of the hardware required for deck- or mast-mounting
solutions. A 6-metre cable with NMEA2000 connector is supplied as
standard.

The Digital Sounder Module

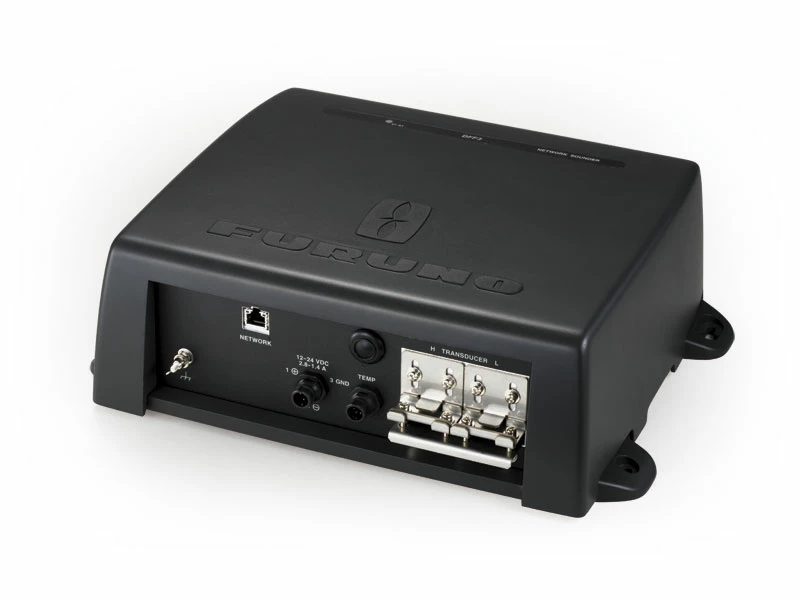

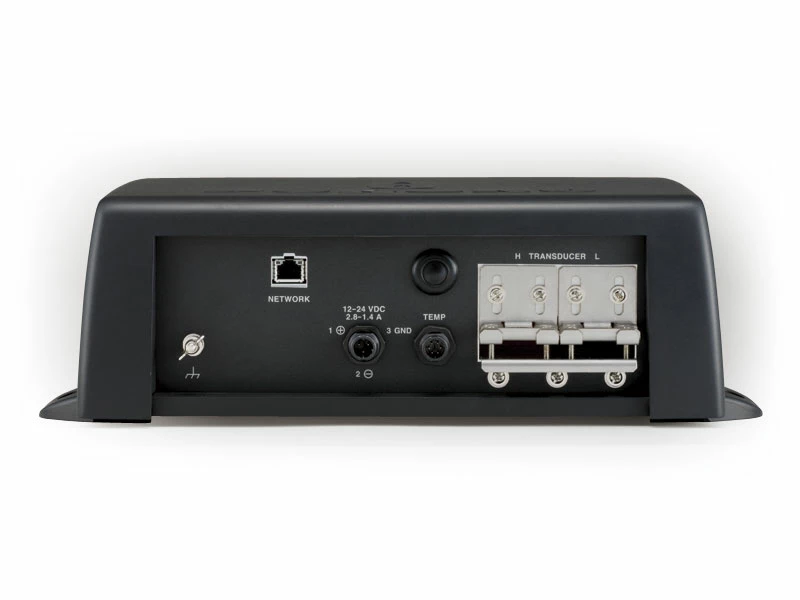

The Furuno DFF3 Digital Sounder Module is a new
network sounder featuring FDF (Furuno Digital Filter) signal
processing technology. The DFF3 is designed for use with NavNet,
NavNet VX2 and NavNet 3D. This new digital Network Sounder can turn
any NavNet display into a powerful, dual-frequency digital
fishfinder. The compact network sounder unit connects directly to a
NavNet display or an Ethernet hub with a single Ethernet cable. If
it is connected to an Ethernet hub that has multiple displays
attached, each of those displays will have access to the Network
Sounder.

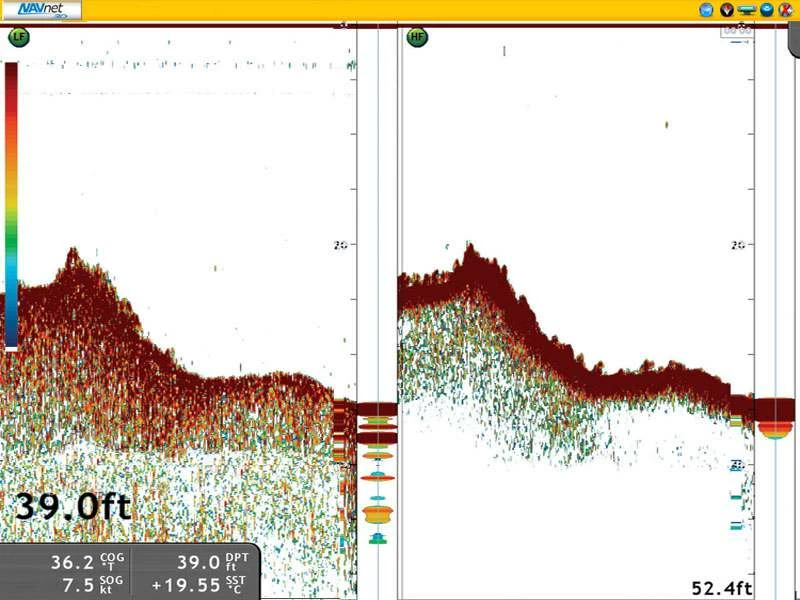

The sounder itself has a selectable 1, 2 or 3kW output power. You
may choose any two operating frequencies from 28 to 200 kHz with
FFS (Furuno Free Synthesis) technology. With the powerful DFF3, you
can obtain detailed echoes of bottom structure and fish using range
scales of up to 3,000 meters (nearly 10,000 feet). And because the
Network Sounder is used on a NavNet display, you will also be able
to use its Radar and Chart Plotter features depending on which unit
you have.

The Transducers

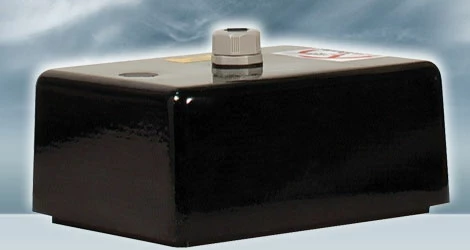

The Furuno CA38BL-9HR FRP Transducer is a
commercial transducer that has a bandwidth of 38kHz and is usable
with FCV295, FCV1150, FCV1100, FCV1200, DFF3 and BBFF3 sonars. When
used with the FCV1100/1200, sensitivity remains high even if the
frequency is shifted +/- 10% to suppress interference. It’s mounted
in the tank or sea chest that’s custom-built into the ship’s
hull.

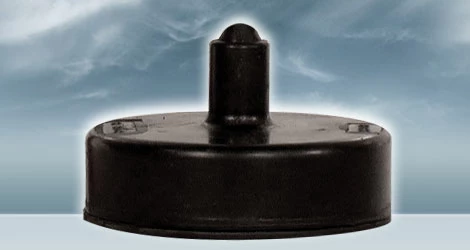

The Furuno CA200B-8B Rubber Coated Transducer is a
single frequency, high power 200kHz, 2kW commercial transducer
designed to be mounted in tanks or sea chests.

Furuno NavNet TZtouch2 12.1″ Multifunction Display
Features:

• Multi Touch Control
• Ultra High Definition
• TruEcho CHIRP
• Furuno Digital Filter
• Bottom Discrimination
• ACCU-FISH
• RezBoost
• GPS internal antenna
• Internal fishfinder
• Auto Tuning (Sensitivity)
• Target Tracking
• AIS
• Enhanced Sunlight Viewable
• Bonded LCD
• Polatised Friendly
• Ethernet Plug&Play
• CAN bus
• Video In/Out
• NMEA2000 Certified
• Display size: 12.1”
• Resolution: WXGA 1280 x 800
• GPS/WAAS: 56 Channel GPS receiver built in
• Fish Finder: 50/200kHz, 600W or 1kW
• Memory: 30,000 User Points, 30,000 Track Points, 200 Planned
  Routes with 500 Points/Route
• Interface: 1 Port, CanBUS/NMEA2000
• LAN: 1 Port, Ethernet 100 BASE-TX
• Wireless LAN: IEEE802.11B, 2.4GHz band
• USB: 1 Port, USB 2.0
• Video Out: 1 Port, HDMI
• Video In: 2 Ports, NTSC/PAL
• Waterproofing: IP56
• Power: 12-24 VDC, 3.0-1.5 A

Furuno NavNet TZtouch2 12.1″ Multifunction Display
Specifications:

Display

• Display Unit: 12.1″ Wide Colour TFT multi touch LCD
• Screen Brightness: 1300cd/? (typical)
• Screen Resolution: WXGA 1280 x 800 pixels
• Language: English (US & UK), French, Spanish, German, Italian,
  Portugese, Swedish, Danish, Norwegian, Finnish, Greek, Chinese
  (simplified Chinese characters), Japanese

Plotter

• Chart: MapMedia mm3d chart (Jeppesen/Navionics/NOAA)
• Memory Capacity: 30,000 user points, 30,000 points for ship’s
  tracks, 200 planned routes (500 points per route)

Radar

• Display Mode: Head-up, North-up (heading input
  required)
• Target Tracking: Max 100 Targets (heading input
  required)

Fishfinder (Internal)

• Transmit Frequency: 50/200 kHz
• Transmission Power: 600 or 1kW (Matching box MB-1100 required
  for some Furuno transducers)
• Display Mode: RezBoost, ACCU-FISH, Bottom Discrimination,
  A-Scope, Auto (Fishing/Cruising/Manual), Bottom Zoom, Bottom
  Lock

GPS / WAAS (Internal)

• Receiving Type: GPS: 56 Channels
• SBAS: 1 channel (C/A mode, WAAS)
• Receiving Frequency: L1 (1575.42 mHz)
• Accuracy: GPS: 10 m Max, WAAS: 3 m Max, MSAS: 7 m Max

Interface

• CAN bus: 1 Port (NMEA2000)
• NMEA0183: 1 Integrated Output Port
• LAN: 1 Port (100 BASE-TX)
• USB: 1 Port (USB 2.0)
• Video Output: 1 Port (HDMI)
• Video Input: 2 Ports (NTSC/PAL)
• AUX I/O: 1 Port (External Event/MOB Input/Operator
  Fitness/Alarm Output)
• SD Card Slot: 1 Slot (Micro SDXC, rear) 2 Slots Card Unit
  (optional)
• Wireless LAN: IEEE802.11b/g/n, Transmit Frequency: 2.4 GHz
  band
• Transducer: 1 Port
• Waterproofing: IP56
• Power Supply: 12-24 VDC 3.0-1.5 A
• Size:
  Flush Mount: 217 (H) x 325 (W) x 105 (D) mm
  Tabletop Mount (optional): 243 (H) x 365 (W) x 112 (D) mm
• Weight:
  Flush Mount: 3.7 kg
  Tabletop Mount (optional): 3.8 kg

AIS

• AIS: Up to 100 targets

Furuno GP-330B GPS/WAAS Receiver Antenna
Features:

• Straightforward “Plug and Play” installation
• High Accuracy, 14 Parallel Channel Receiver with Twelve
  Dedicated GPS Channels and Two Dedicated SBAS (WAAS/EGNOS/MSAS)
  Channels
• NMEA2000 Certified GPS Antenna Sensor
• Fast Start Up (1 minute Cold Start Time-to-First-Fix)
• Position updated every second
• Unique “Pin-Enabled” Termination Resistor allows simple
  NMEA2000 Backbone or Drop Wiring configurations
• Space-saving installation
• Ideal position-fixing sensor for NavNet 3D series
• Direct connection to any Furuno DRS

Furuno GP-330B GPS/WAAS Receiver Antenna
Specifications:

GPS/SBAS (WAAS/EGNOS/MSAS)

• Receiving Type: Twelve discrete channels, C/A code,
  all-in-view, SBAS (WAAS/EGNOS/MSAS)
• Receiving Frequency: L1 （1575.42 MHz）
• Accuracy: GPS: 10 m, MSAS: 7 m, WAAS: 3 m

Plotter

• Chart: WGS-84, NAD-27 and others

Others

• Waterproofing: IEC60529 IP56
• Power Supply: 12 VDC、max 0.175 A
• Weight: 0.22　kg

Furuno DFF3 1-3kW Digital Sounder Module
Features:

• Utilises FDF (Furuno Digital Filter) signal processing
  technology
• Output power: 1 to 3 kW
• Furuno Free Synthesizer (FFS) allows for selectable operating
  frequency of 28 to 200 kHz
• Dual frequency, alternate transmission
• Works with NavNet1, NavNet vx2 and NavNet 3D with no software
  update required
• Compatible with Airmar transducer ID technology
• Heaving compensation with use of the SC-30/50/110
• Variable Transmission Rate for different depth ranges allows
  for more detailed observation of bottom
• Dedicated 6-pin temperature sensor port available
• WAGO connection for ease of installation

Furuno CA38BL-9HR FRP Transducer Features:

• Frequency: 38kHz
• Power Rating: 2kW
• Beam angle: 20.5 x 2.05 degree
• Housing type: FRP
• No connector
• Mount type: Tank
• Cable length: 15m

Furuno CA200B-8B Rubber Coated Transducer
Features:

• 2 kW
• Frequency: 200 kHz
• 5.5 degree Beam Angle
• Weight: 5.7 lbs
• Rubber Coated
• Chest or tank mounted
• 15-Metre Cable (no connector)

What’s in the box:

• Furuno TZT2 12.1″ Multifunction Display Unit
  2x Fuse 5A 125V
  LCD cleaning cloth
  Cable accessories CAP6-BK-PE
  Power cable assembly 3.5m
  2x Flush mount sponge 12H
  2x Flush mount sponge 12v
  2x Flush mount fixture
  EMI core GRFC-9
  Slotted head hex bolt M6x12
  Operator’s guide
  Installation Manual
  Flush mounting template
  Environmental data sheet
• NN3D/Maxsea TimeZero Jeppesen NZ C-MAP Wide Vector Chart (New
  Zealand)
• 16GB Blank SanDisk/Apacer Micro SD Card for TZT2
• Furuno GP330B GPS Receiver
  Flush mount kit
  Pipe mount kit
  Deck mount kit
  6m NMEA2000 cable assembly
• Micro Tee – Male (Left) / Female (Bottom) / Female
  (Right)
• Micro Termination Resistor (Male)
• Micro/Mid Powertap Tee – FM (left) / 5m 4-wire Power drop
  (bottom) / FM (right)
• Micro Double-Ended Cordset – M to F – 0.5m (Grey)
• Furuno Digital Sounder Module Dual Frequency Free Synthesier
  1kW to 3kW for NAVnet
• 000-015-032 – Furuno CA 200B-8B Rubber Coated Transducer 200kHz
  2kW with 15m Cable
• 000-015-083 – Furuno CA 38BL-9HR FRP Transducer 38kHz
  2kW

Furuno DFF3 1-3kW Digital Sounder Module User Manual
